Audiojudgement Acoustics 201 Loudspeaker Measurements TUTORiAL



FANTASTiC | 03 July 2018 | 2.8 GB


Learn how to measure frequency response

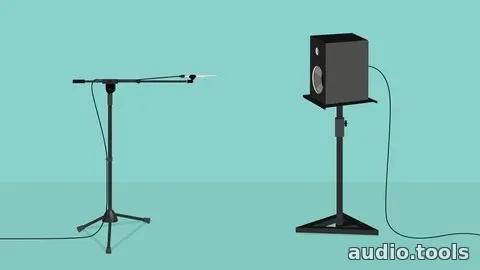

The first thing you will learn from this course is to measure the frequency response of a certain speaker driver, loudspeaker or sound system. The difficult part is to get an anechoic response without an anechoic chamber. Using different measuring techniques and with the help of intuitive software, you will learn how to measure the full frequency bandwidth anechoically in your own living room. This will help you set up your audio system using measured data, or it can be used to design crossovers for your particular DIY loudspeaker.


A little bit of electrical engineering

A sound system is a combination of both acoustical and electrical parts. You will also learn how to measure impedance and create impedance plots. Measure different electrical components like capacitors, inductors and resistors. Also, if you have an unknown speaker driver you will learn how to measure the Thiele / Small parameters without much fuss.

Dip your feet into crossover design

While this course will not teach you how to design a crossover, it will show you how to create FRD and ZMA files. These are frequency response and impedance files which are used in crossover design apps. At the end of the course I will show you how to load these files into such program, and tryout different circuits and see how adding crossover components behave. A comprehensive course about crossovers will be released in the near future.

Do I need certain equipment?

Yes, you will need 2 core pieces of gear :

•A measurement microphone (like miniDSP UMIK-1).
•A device for measuring impedance (like Dayton Audio DATS v2).

These are roughly 100$ each, but you will get a more comprehensive list of the equipment needed inside the course. With alternatives that you can buy, or more cheaper options. Also, some accessories that will make your life easier are included in the list.

Software option

For the different acoustical measurements we are going to use Room EQ Wizard (or REW). This is a free to use software. Usually, acoustics software are quite expensive and difficult to follow. However, REW is free and quite intuitive to use. Pretty much a complete package. It only misses one function, which I consider important. Don't worry, we're are not going to step up to those complicated application. I devised an Excel spreadsheet which handles this shortcoming. You will find the spreadsheet inside the course.
